DEVibrating pile driver PTC 34 HFV with drive unit Power Pack PVE 1000
Price:
189.000,00 EUR (excl. VAT)
| vibratory hammer Model: | PTC 34 HFV | |
| ser No. | 17003 | |
| Year of construction: | 2005 | |
| Power of vibrator kW/hp | 405/550 | |
| Eccentric moment m.kg | 0-34 | |
| Maximum frequency Hz/rpm | 38/2300 | |
| Max. centrifugal force kN | 2010 | |
| Max. line pull capacity kN | 400 | |
| Vibrating weight kg | 5000 | |
| Total weight kg | 7000 | |
| Max. amplitude mm | 13,6 | |
| Cooler* | standard | |
| Length m | 2320 | |
| Max.width m | 0,86 | |
| Centre width m | 0,38 | |
| Height without clamp m | 2,255 | |

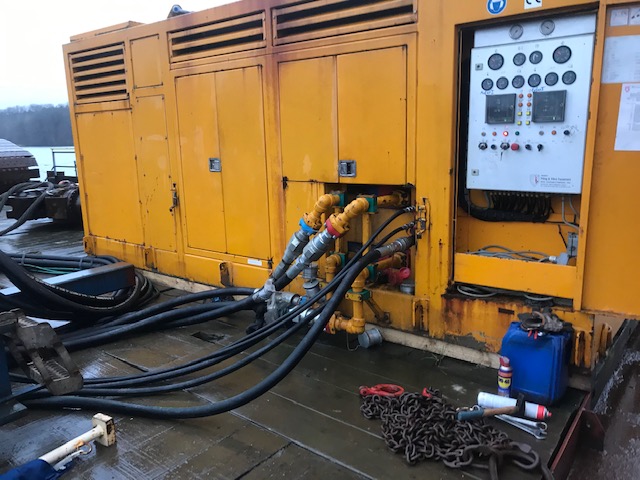

| Power Pack | ||
| Drive unit | PVE 1000 | |
| serial no. | 1000-20 | |
| year of construction | 2004 | |
| operating hours | 2631 | |
| Diesel engine: | 2 x Volvo | |
| Power Kw/hp: | 784/1066 | |
| Flow rate l/min: | 1000 | |
| Max. oil pressure in bar: | 350 | |
| LxWxH in mm: | 5000 x 2340x 2200 |
